Bullnosing/profiling and mitering. MGP is the new automatic machine for steps and edging on ceramic, porcelain, marble, granite, and agglomerate materials. One machine can create 45 degree mitres and can bullnose the edges of tiles.
Profiling & Bullnosing, 12mm thickness, 20mm thickness, Mitring & Bevelling

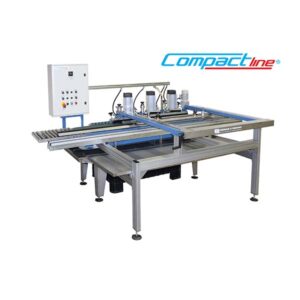

Automatic Machine for Steps and Edging (MGP/3)

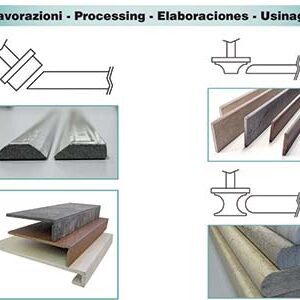

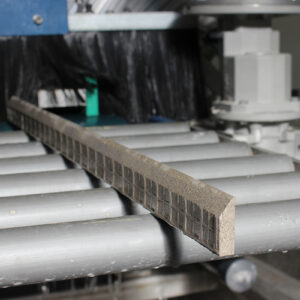

Bullnosing/profiling and mitering. Two functions from one machine. Automatic machine for steps and edging on ceramic, porcelain, marble, granite, and agglomerate materials. It is a revolutionary model that allows two different types of machining with just one automated, compact machine, bullnosing and mitering. They have a 45 degree bevel for creating steps. They create edging for skirtings, doorsteps, and windowsills with bullnose and half bullnose edges. MGP/3 consists of three motor spindles for tools which can be angled to create a 45 degree bevel for steps or adjusted to an upright position for creating edges.
Specification:
Maximum working thickness: 12mm (porcelain), 20mm (marble)
Minimum format obtained: 30mm
Grinding wheels diameter: 140mm
Belt width: 350mm
Motor power: 2.2kW 2800 rpm
Maximum dimensions: 2150 x 3050 x 1500mm
Weight: 600kg
