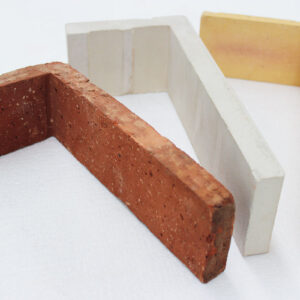

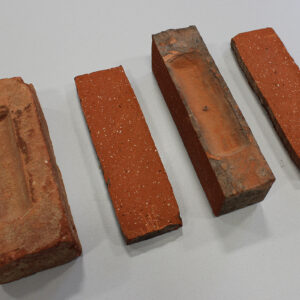

Automatic brick cutting machine suitable to make strips and angular pieces from the full or hollow brick. The machine can cut bricks continuously, with the 1st diamond blade placed horizontally and the 2nd one mounted vertically.
Cutting, Brick Processing
Brick Cutting Machine for Strips and Angular Pieces (MTAR)
Brick cutting machine for strips and angular pieces from the full or hollow brick with just one working. The machine can cut bricks continuously, with the 1st diamond blade placed horizontally and the 2nd one mounted vertically.
Specification:
Maximum working thickness: 120mm
Minimum standard format obtained: 25 – 50mm
No of cutting discs: 1+1
Diameter of cutting discs: 1 x 350 / 1 x 650mm
Belt width: 500mm
Cutting motor power: Horiz 10kw / Vert 11.2kW
Maximum dimensions: 2750 x 1300 x 1900mm
Weight: 900kg
| Weight | 900 kg |
|---|---|
| Production Size | Large |
| Range | Brick World, Compactline, Industrialine, Robustus |
