Cutting and Profiling for Kitchen and Bathroom, Counter Tops & Steps (MVB/5 AS)

Cutting and profiling for kitchen and bathroom counter-tops & steps. The automatic machine is able to carry out both the cutting and the profiling in a single pass with just one movement of the piece. Alternatively, it can make a 45 degree mitering for the production of kitchen and bathroom counter-tops and steps. MVB AMINEUS makes the production of high quality elements possible on ceramic, porcelain, marble, granite, and agglomerate materials in a fast and simple way with just one automated compact machine.

Specification:
Maximum working thickness: 20mm
Dimensions obtained: 330mm
No of cutting discs: 1-4
No of grinding wheels: 4
Diameter of cutting discs: 300mm
Diameter of grinding wheels: 140/160mm
Belt width: 350mm
Maximum operating power: 16kW
Dimensions: 1500 x 3800 x 1800mm
Weight: 750kg

Other sizes are available. Please contact us on 01565 750666 for further information.

SKU: MVB/5 Categories: , ,

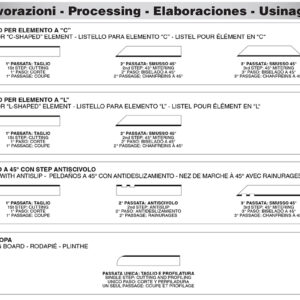

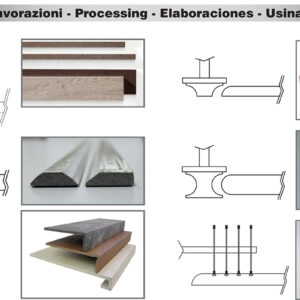

The MVB AMINEUS is an automatic machine able to carry out both the cutting and the profiling of skirting pieces, doorsteps and window sills with bullnose and hand bullnose edges, in a single pass with just one movement of the piece.



Weight750 kg
