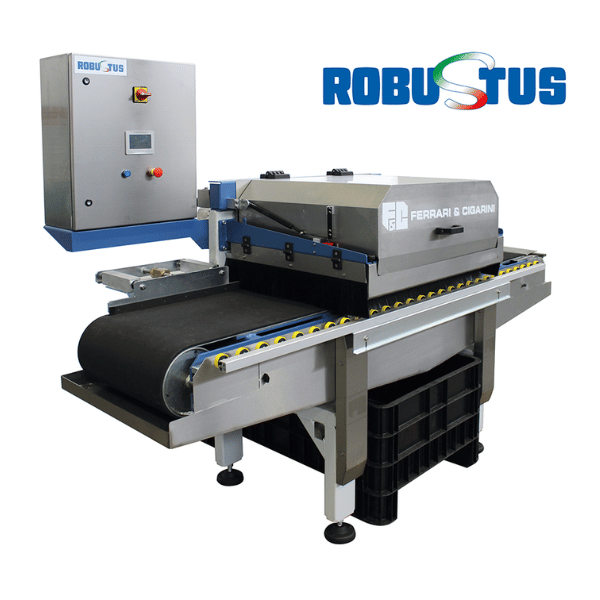

Robustus Cutting Machine with Two Heads (MTR 500/2)

Robustus cutting machine with two heads. Suitable for cutting ceramic tiles of any kind including marble, granite, glass, and bricks.

Specification:
Maximum working thickness: 20mm (porcelain), 30mm (marble)
Minimum standard format obtained: 25mm
Maximum cutting width: 450mm
No of cutting discs: 6+6 (standard)
Diameter of cutting discs: 300mm
Belt width: 500mm
Cutting motor power: 11.2kW 2800 rpm
Maximum dimensions: 2750 x 1300 x 1900mm
Weight: 950kg

SKU: MTR 500/2 Categories: ,

Automatic machine for multiple linear cutting with diamond discs. Suitable for cutting ceramic tiles of any kind, marble, granite, glass and bricks.

ADVANTAGES OF MTR 500/2 ROBUSTUS

  • Side opening for large sizes.
  • Double hyper-static lateral support of the motor shafts for stability and anti-vibration.
  • Autonomous water recycling and/or the possibility of connection to the general recycling system.
  • 500 mm cutting belt.
  • Possibility to have 1 or 2 cutting heads on the same frame.
Weight950 kg
Range

Brick World, Compactline, Industrialine, Robustus
